06U 550X500
Wall Mounting Rack 06U 550X500
Specification
Model No
MWM EXE 050 06
Capacity
6U
Width
550 mm
Depth
500 mm
Height
341 mm
Usable Depth
385 mm
Usable Height
281 mm
Mounting Width
518 mm
Mounting Height
227 mm
Features
- Conforms to DIN 41494 or Equivalent EIA/ISO/EN/CEA Standard.
- Exquisite Design with Precise dimension.
- Material SPCC Quality Cold Rolled Sheet.
- Reliable Structure with high Craftmanship.
- Hi-tech Manufacturing methods with Quality Management System.
- Max Loading Capacity 60kgs.
- Convenient Wall mounting with additional provision for Floor mounting & Table mounting options.
- Cable entry round punches at Top & Bottom with Cromet.
- Front Toughened Glass Door with Lock & Keys, Side ventilated steel doors with Lock & keys & Back ventilated removable panel.
- Turning angle of front door over 180°.
- Powder coated finish with Ten tank process meeting ASTM standard, Color - Frame RAL 7035 Door RAL 7037.

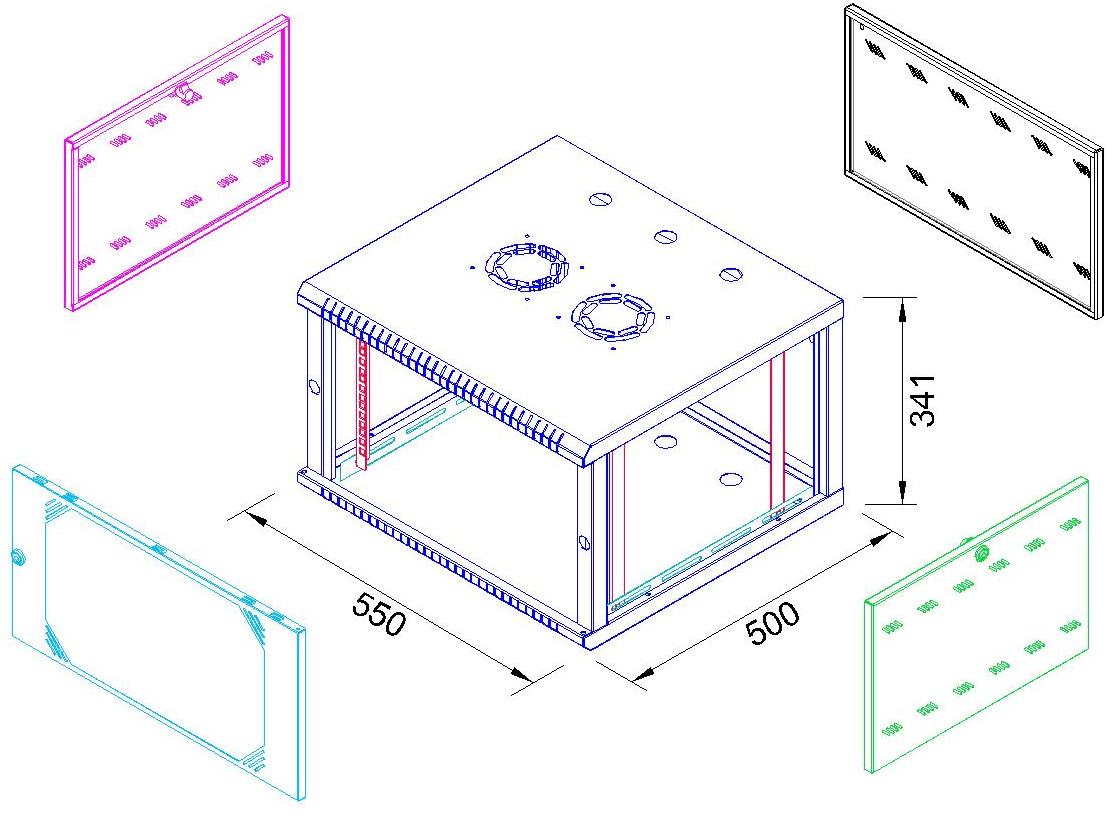

Drawing
Wall Mounting Rack 06U 550X500
