09U 600X450
Wall Mounting Outdoor Rack 09U 600X450
Specification
Model No
MWM ODR 045 09
Capacity
9U
Width
600 mm
Depth
450 mm
Height
506 mm
Usable Depth
370 mm
Usable Height
416 mm
C Base height
100 mm
Total Height
667 mm
Features
- Conforms to DIN 41494 or Equivalent EIA/ISO/EN/CEA Standard.
- Outdoor IP55 Grade.
- Wall Mount / Pole Mount / Floor Mount options.
- Top Kennopy with air exhausting facility.
- Bottom Kennopy with fresh air filtered inlet facility.
- Cable entry at Bottom side with Cable Gland provision.
- Front Steel Door with D foam enhances airtight closing with Lock & Key.
- Exquisite Design with Precise dimension.
- Material SPCC Quality Cold Rolled Sheet.
- Reliable Structure with high Craftmanship.
- Hi-tech Manufacturing methods with Quality Management System.
- Outdoor grade Pure Polyster Powder coated finish with Ten tank process meeting ASTM standard, Color - RAL 7035.

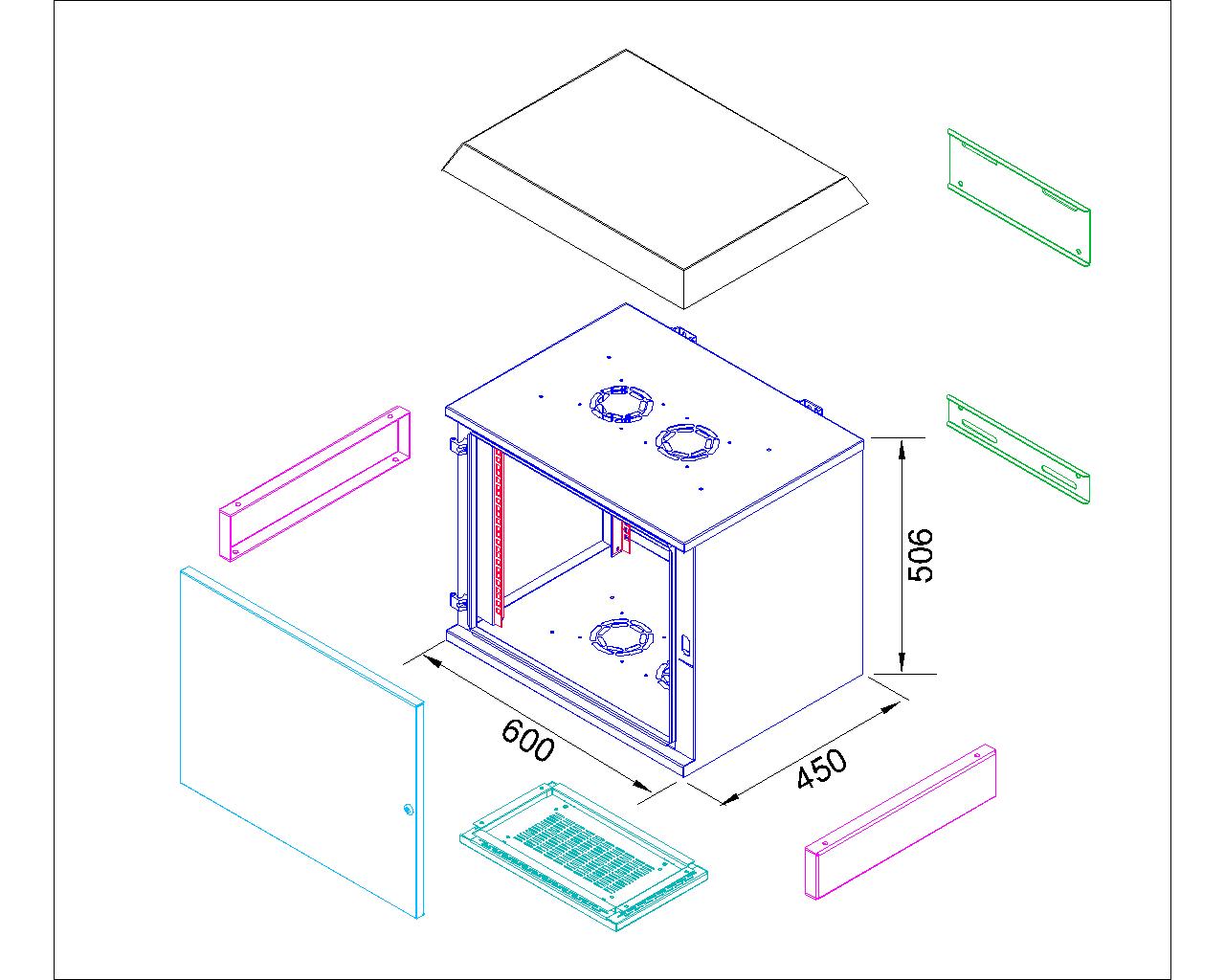

Drawing
Wall Mounting Outdoor Rack 09U 600X450
