Features
- Max Loading 60kg
- Convenient and quick wall mounting
- Welded Frame, Reliable structure
- 19” standard installation
- Cable entry on Top & Bottom cover
- Front Toughened Glass Door
- Turing angle of front door over 180°
- Material SPCC Quality Cold Rolled Sheet
- Powder coating frame RAL 7035 door RAL 7016
Specification
| Model No | - | MWM STD 035 02 |
| Capacity | - | 2U |

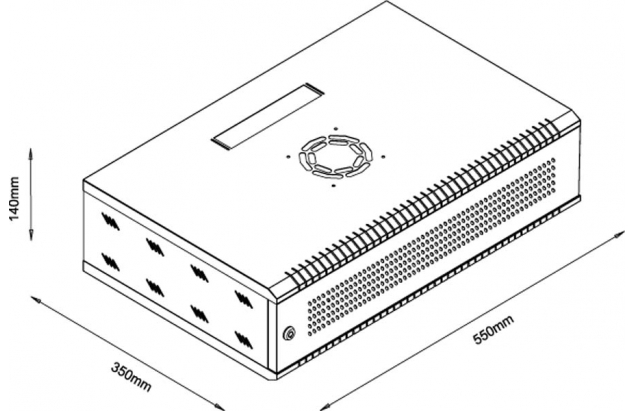

| Width | - | 550 mm |
| Depth | - | 350 mm |
| Height | - | 140 mm |
| Usable Height | - | 100 mm |
| Usable Depth | - | 255 mm |
| Wall Mounting Pitch | ||
| Mounting width | - | 518 mm |
| Mounting Height | - | 107 mm |
