04U 550X400 mm

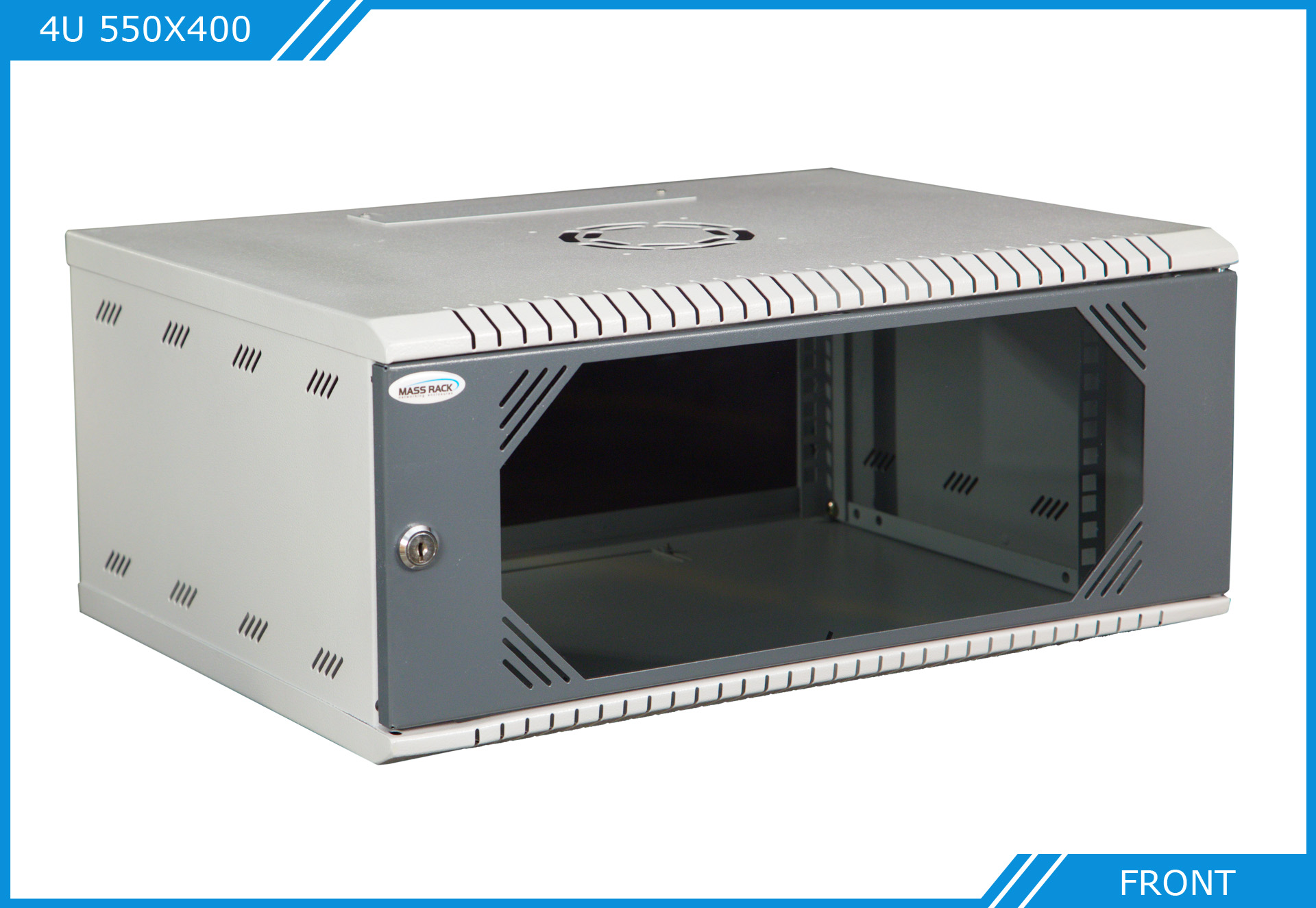

Wall Mounting Rack 04U 550X400
Specification
Model No
MWM STD 040 04
Capacity
4U
Width
550 mm
Depth
400 mm
Height
230 mm
Mounting Width
518 mm
Usable Depth
295 mm
Usable Height
191 mm
Mounting Height
137 mm
Features
- Conforms to DIN 41494 or Equivalent EIA/ISO/EN/CEA Standard.
- Exquisite Design with Precise dimension.
- Material SPCC Quality Cold Rolled Sheet.
- Reliable Structure with high Craftmanship.
- Hi-tech Manufacturing methods with Quality Management System.
- Max Loading Capacity 60kgs.
- Quick and Convenient Wall mounting with included mounting template.
- Cable entry cutout at Top & Bottom side with closing plate.
- Front Toughened Glass Door with Lock & Keys.
- Turning angle of front door over 180°.
- Powder coated finish with Ten tank process meeting ASTM standard, Color - Frame RAL 7035 Door RAL 7037.

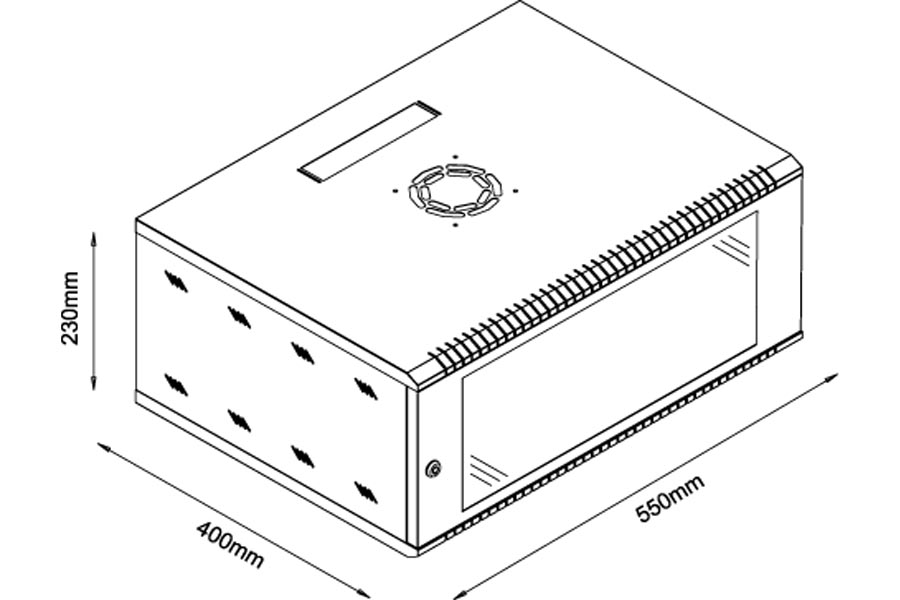

Drawing
Wall Mounting Rack 04U 550X400
