06U 550X600

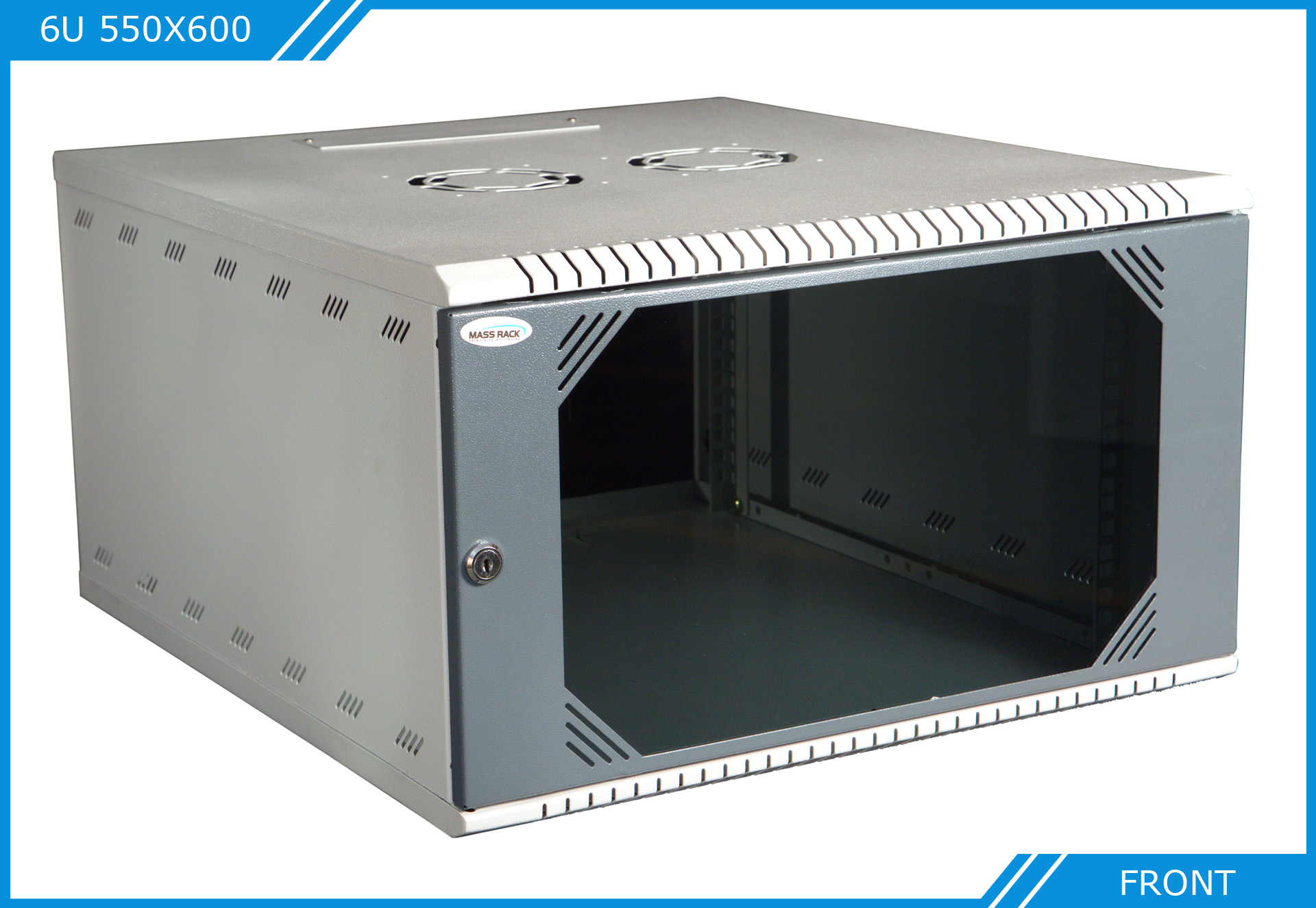

Wall Mounting Rack 06U 550X600
Specification
Model No
MWM JUM 060 06
Capacity
6U
Width
550 mm
Depth
600 mm
Height
320 mm
Mounting Width
518 mm
Usable Depth
495 mm
Usable Height
281 mm
Mounting Height
227 mm
Features
- Conforms to DIN 41494 or Equivalent EIA/ISO/EN/CEA Standard.
- Exquisite Design with Precise dimension.
- Material SPCC Quality Cold Rolled Sheet.
- Reliable Structure with high Craftmanship.
- Hi-tech Manufacturing methods with Quality Management System.
- Max Loading Capacity 60kgs.
- Quick and Convenient Wall mounting with included mounting template.
- Cable entry cutout at Top & Bottom side with closing plate.
- Front Toughened Glass Door with Lock & Keys.
- Turning angle of front door over 180°.
- Powder coated finish with Ten tank process meeting ASTM standard, Color - Frame RAL 7035 Door RAL 7037.

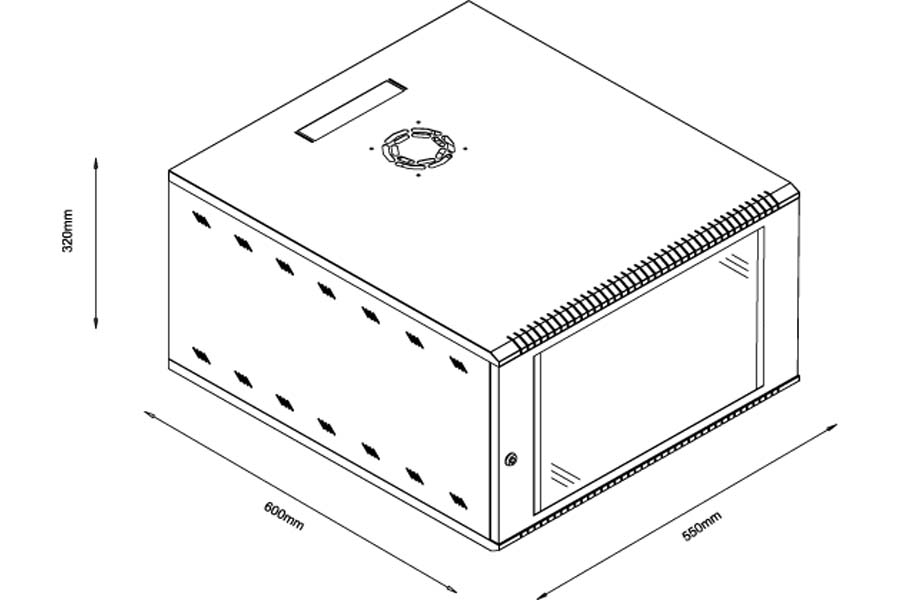

Drawing
Wall Mounting Rack 06U 550X600
