42U 800X1000
Floor Standing Server Rack 42U 800X1000
Specification
Model No
MFS JUM 100 42
Capacity
42U
Width
800 mm
Depth
1000 mm
Height
1970 mm
Castor Height
100 mm
Usable Depth
850 mm
Usable Height
1888 mm
Total Height
2070 mm
Features
- Conforms to DIN 41494 or Equivalent EIA/ISO/EN/CEA Standard.
- Exquisite Design with Precise dimension.
- Material SPCC Quality Cold Rolled Sheet.
- Reliable Structure with high Craftmanship.
- Hi-tech Manufacturing methods with Quality Management System.
- Static Loading Capacity 800kgs.
- Adjustable Heavy duty 3” Castor wheels 2nos with brake & 2nos without brake.
- Cable entry cutout at Top & Bottom side with closing plate.
- Front Toughened Glass Door with Lock & Keys.
- Back ventilated Steel Door with Lock & Keys.
- Turning angle of front and back door over 180°.
- Removable Side Panels with Lock & Keys.
- Powder coated finish with Ten tank process meeting ASTM standard, Color - All RAL 9005.

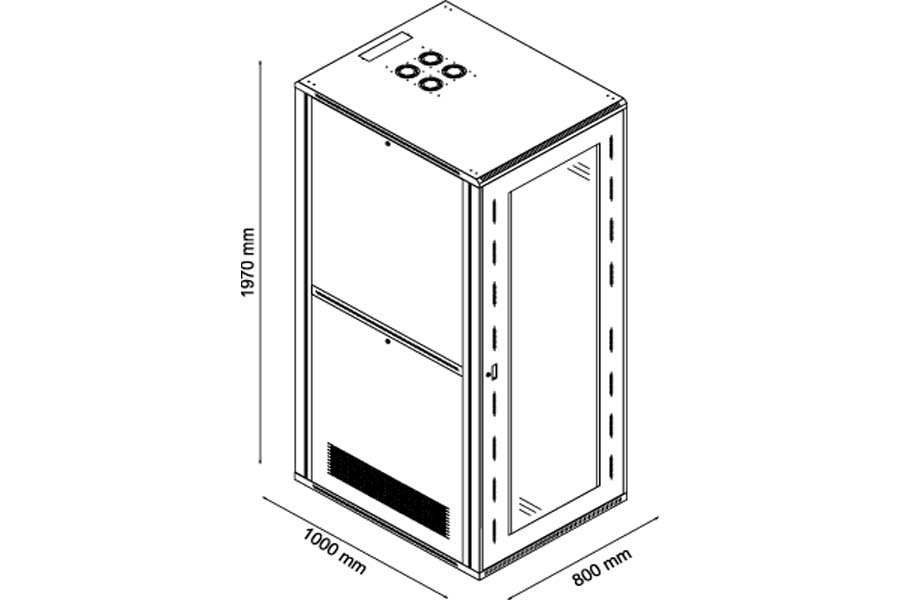

Drawing
Floor Standing Server Rack 42U 800X1000
