27U 600X600
Floor Standing Network Rack 27U 600X600
Specification
Model No
MFN STD 060 27
Capacity
27U
Width
600 mm
Depth
600 mm
Height
1325 mm
Castor Height
75 mm
Usable Depth
500 mm
Usable Height
1215 mm
Total Height
1400 mm
Features
- Conforms to DIN 41494 or Equivalent EIA/ISO/EN/CEA Standard.
- Exquisite Design with Precise dimension.
- Material SPCC Quality Cold Rolled Sheet.
- Reliable Structure with high Craftmanship.
- Hi-tech Manufacturing methods with Quality Management System.
- Static Loading Capacity 600kgs.
- Adjustable 2” Castor wheels 2nos with brake & 2nos without brake.
- Cable entry cutout at Top & Bottom side with closing plate.
- Front Toughened Glass Door with Lock & Keys.
- Back ventilated Steel Door with Lock & Keys.
- Turning angle of front and back door over 180°.
- Powder coated finish with Ten tank process meeting ASTM standard, Color - Frame RAL 7035 Door RAL 7037.

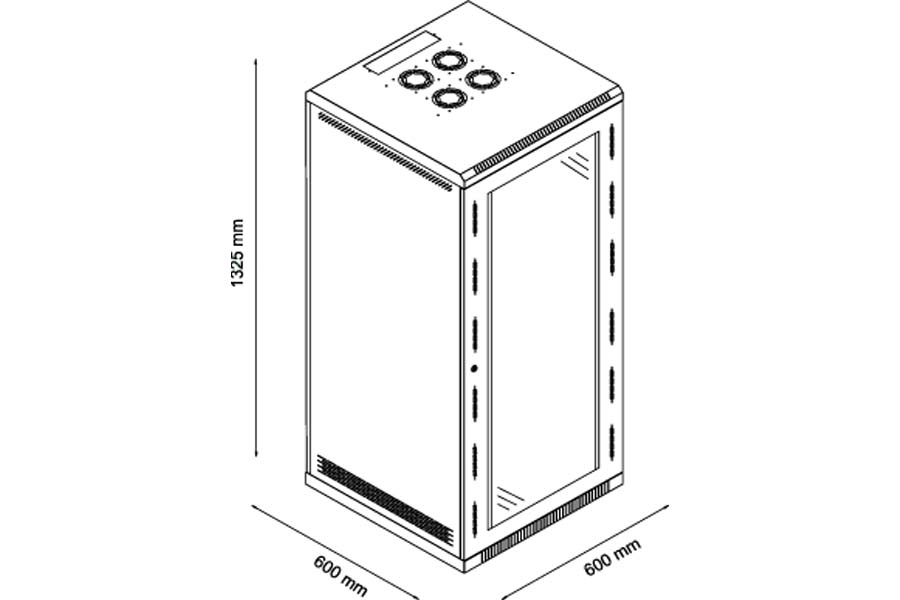

Drawing
Floor Standing Network Rack 27U 600X600
