Cantilever Tray

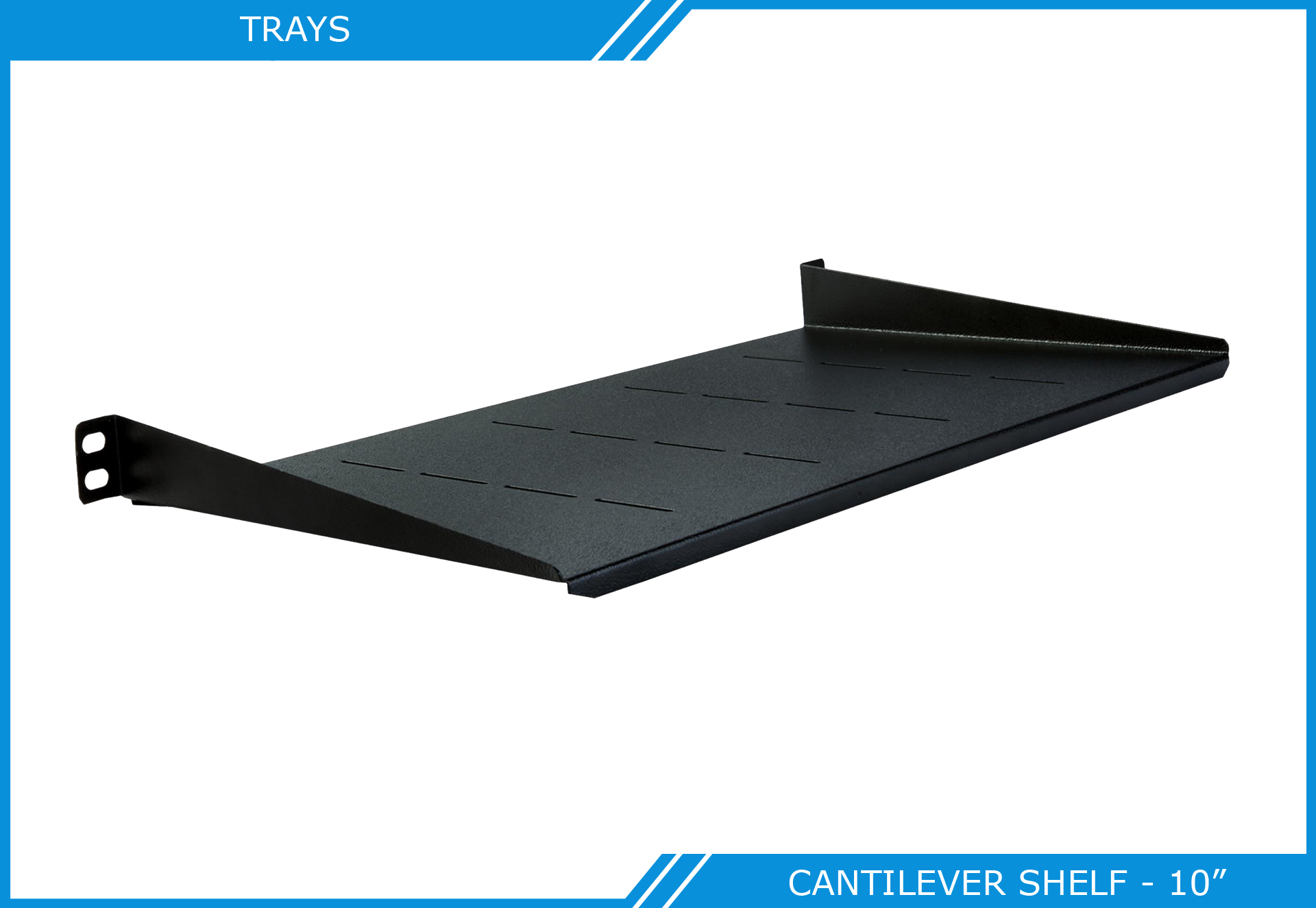

Cantilever Shelf Tray - 10 Inch
Specification
Model No
MWT 001 CLT STD
Shelf Type (fixing point)
Fixed (2)
Capacity
10 kg
Width
480 mm
Depth
225 mm
Height
35 mm
Features
- Material SPCC Quality Cold Rolled Sheet
- Provided With Ventilation
- 19” Standard Installation
- Easily adjustable, Unmatched Rigidity & Strength.
- Needed Screws & Nuts are included
- Ideal For devices smaller than standard 19″ sizes like Modems, Dvr etc.
- Powder coated finish with Ten tank process meeting ASTM standard, Color - RAL 9005.

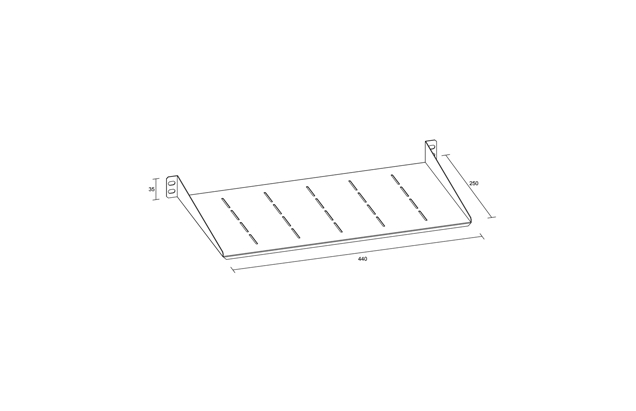

Drawing
Cantilever Shelf Tray - 10 Inch
