Four Fans

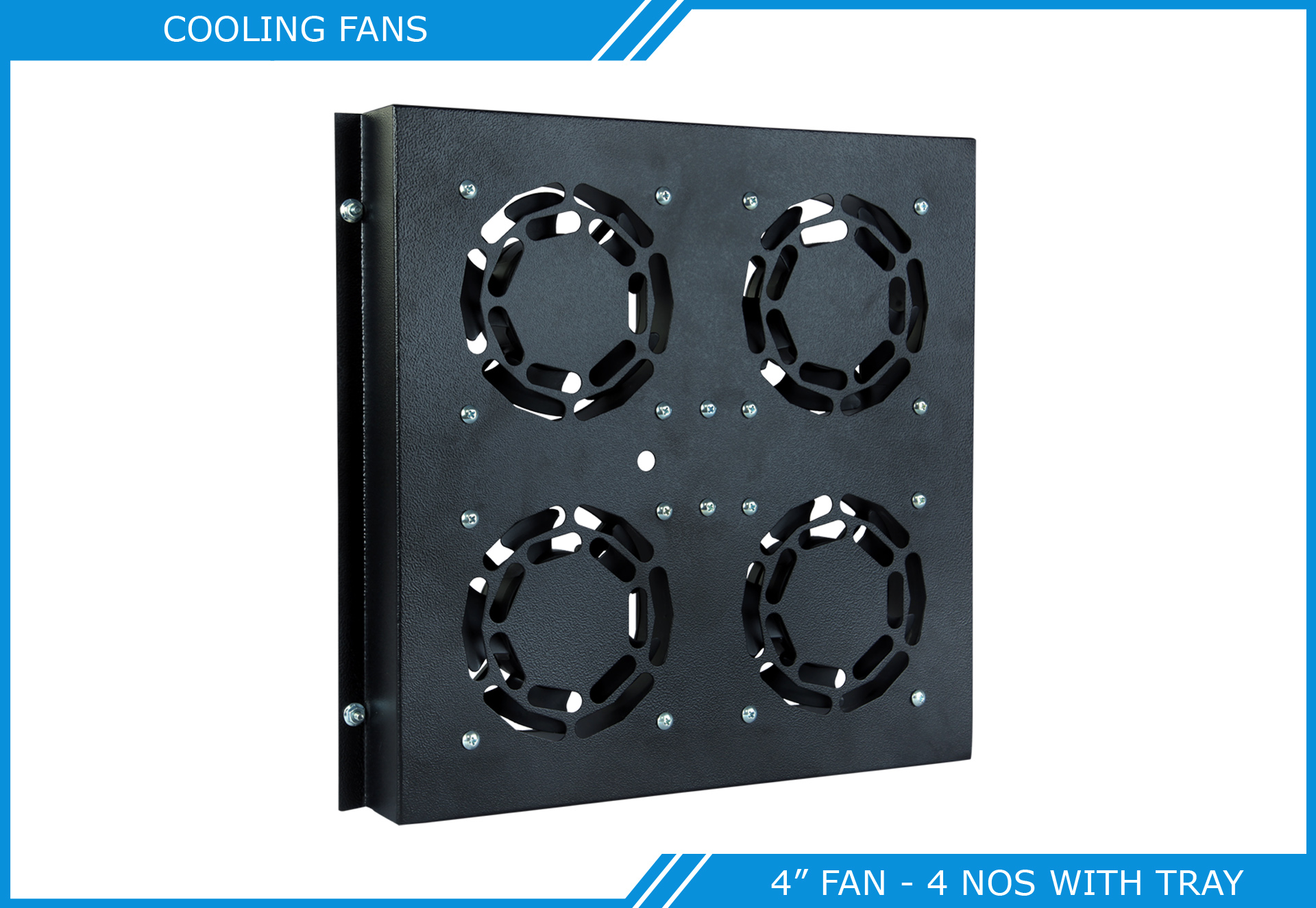

Cooling Fan 4" - 4 nos with Tray
Specification
Model No
MFA 004 REX 360
Capacity
360 CFM
Length
335 mm
Width
335 mm
Height
40 mm
Operating Voltage
AC 230V (185~ 245 VAC)
Operating Temperature
-10 to +70 degree С
Bearing Tyре
Sleeve Bearing
Speed
2650 to 2900 RPM
Input Power
20/17 W
Current
0.13/0.11 A
Noise
43/48 dB(A)
Motor Protection
Impedance Protected
Dielectric Strength
AC 1500V for 1 minute
Features
- Fan Tray is made of SPCC Quality Cold Rolled Sheet
- Easy to Access and Maintenance
- Fans securely mounted on the Tray and integrated into the rack to ensure safe operation.
- Complete with Inner Wiring
- Optimal Airflow with Lower Noise
- Powder Cord Length 1.8 mtr
- Four Fans for 17U to 42U all Floor Standing Racks
- Easy to mount, Needed Screws & Nuts are included
- Tray Powder coated finish with Ten tank process meeting ASTM standard, Color - RAL 9005.

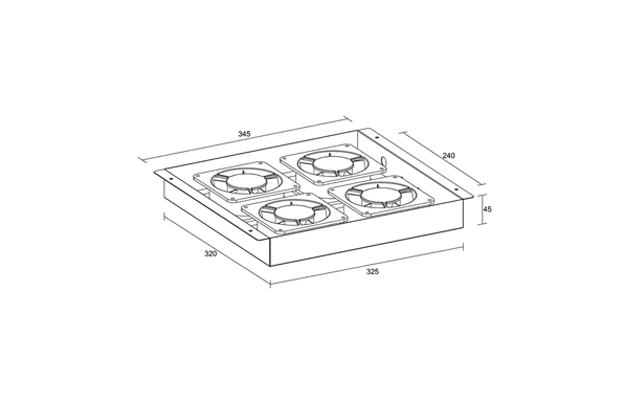

Drawing
Cooling Fan 4" - 4 nos with Tray
